Description
PowerPax Engineering Ltd. Powered by Perkins diesel generators are incredibly efficient and produce remarkable results. Featuring Deep Sea control panels and well-known Leroy Somer alternators as standard, this line is ideal for scenarios where on-site space is restricted or where you want to cut costs on logistics. You may select the generator power solution that best meets your demands, whether those needs are economy, emissions, or quick delivery, thanks to the large number of options available.
| Engine | Perkins 1103A-33G |
| Alternator | Leroy Somer TAL-042-C/ Stamford-BCI184G/ Mecc Alte – ECO28-VL |
| Control panel | Deepsea DSE6110 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| Prime Power (PRP) | 30 KVA | 24 KW |
| Standby Power (ERP) | 33 KVA | 26.4 KW |
| Voltage | 400V |
| Rated current | 43.3 Amps |
| Fuel consumption | @100% load L/h 7.1 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |

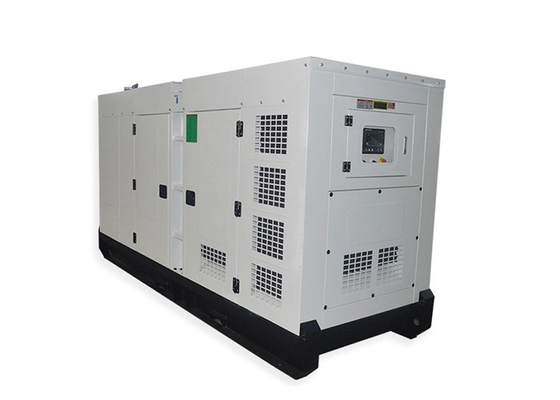

| Canopied | 2220 x 1130 x 1210 | 1225 | 80 |
| Open | 1685 x 720 x 1340 | 815 | 85 |
Data Sheet
Engine |
Alternator |
| Perkins 1103A-33G | Leroy Somer TAL-042-C |
| Stamford-BCI184G | |
| Mecc Alte – ECO28-VL |
